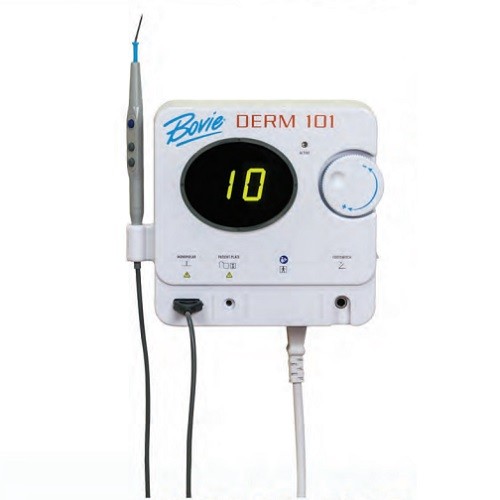

Bovie Derm 101 - 10 W High Frequency Desiccator Derm 101

Most procedures performed by a High Frequency Desiccator utilize ten watts of power or less. The Derm 101 and Derm 102 are economical, 10 watt high frequency desiccators, thoughtfully designed to give practitioners the ability to perform in-office, minor skin procedures such as the removal of skin tags, benign lesions and premalignant lesions. These Bovie units allow practitioners to provide better patient care in the office, at a sensible price, saving the patient time and money, while increasing their practice revenue.

Package Includes:

• D101 – Derm 101 Unit
• A902 – 3-Button Power Control & Autoclavable Handpiece
• A804 – Sharp Dermal Tips, Non-Sterile (5ea)
• A805 – Sharp Dermal Tips, Sterile (2ea)
• A806 – Blunt Dermal Tips, Non-Sterile (5ea)
• A807 – Blunt Dermal Tips, Sterile (2ea)
• A806DE – Derm-Elite™ Premium Blunt Dermal Tip, Non-Sterile (2ea)
• A807DE – Derm-Elite™ Premium Blunt Dermal Tip, Sterile (2ea)
• A910 – Disposable Handpiece Sheath, Non Sterile (2ea)
• A837 – Wall Mount Kit (1ea)
• Medical Grade Power Cord
• User Manual (CD Format)

TECHNICAL SPECS

• MODE: Coagulation
• OUTPUT POWER: 10 W @ 1000Ω
• OUTPUT FREQUENCY: 550 kHz ± 44.9 kHz
• REPETITION RATE: 19.5 kHz ± 10%
• CREST FACTOR @ RATED LOAD: 10.0 ± 20%
• VP-P: 3.3 kV

• MODE: Bipolar
• OUTPUT POWER: 10 W @ 150Ω
• OUTPUT FREQUENCY: 550 kHz ± 44.9 kHz
• REPETITION RATE: 19.5 kHz ± 10%
• CREST FACTOR @ RATED LOAD: 10.0 ± 20%
• VP-P: 1.0 kV

• Main Voltage: 100 – 240 VAC ± 10%
• Main Frequency: 50 – 60 Hertz
• Main Current: 320mA Max.
• Power Consumption: 28 VA
• Dimensions: Height 8.2” (208mm) Width 7.2” (184mm) Depth 2.7” (69mm)
• Weight: < 1.4 kg (< 3 lbs)
• Basic Construction: In accordance with
• EN 60601-1
• Mode of Operation: Intermittent Operation
• Output Type: TYPE BF
• Duty Cycle: 10sec on / 30sec off
• Main Fuses: T 400mAL, 250V
